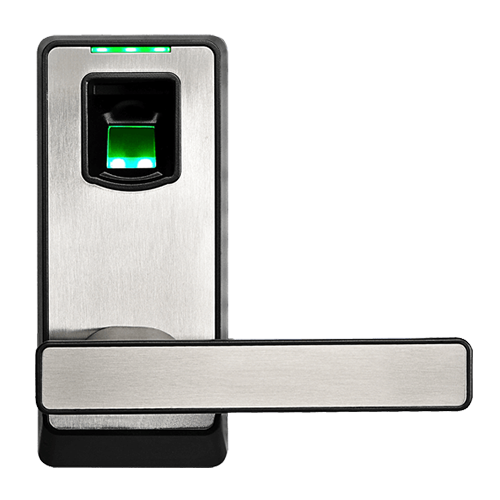

PL10B/PL10DB
· ML10/PL10 series is a smart lock with embedded fingerprint recognition technology. · It is DIY design,which can replace knob lock easily and quickly. · You even can do it by yourself
Product Features
With the new generation fingerprint recognition algorithm
Rugged, sleek and compact design
Idle handle design to prevent from forcible entry
Handle, latch and strike is reversible design for all door open direction
Low battery warning
Registration data are stored even if there is power loss
Emergency key override (concealed)
LED indicator and inbuilt buzzer
External terminals to draw back-up power from a 9V battery
Normal open mode
Technical Specifications
Card
ID Card (Optional)
Communication
Bluetooth (Optional)
Material
Zinc Alloy (ML10 Series)
ABS Plastic (PL10 Series)
Backset
60mm or 70mm (Adjustable)- American Single Latch; 62 mm - German Standard Mortise
User Capacity
Admin -10; Normal User - 60; Temporary User - 20
Power Supply
4 ×AA Alkaline Battery
Operating Temperature
0°C - 55°C
Battery Life
Over 6000 Times (Approx1 year)
Backup Unlocking Way
Mechanical Key & 9V Battery
Door Thickness
30-53 mm (Standard)
Dimensions (W*L*D )
Front - 69*155*35 mm
Back - 69*155*25 mm
Remarks
* ML10R/PL10R only support MF card function
