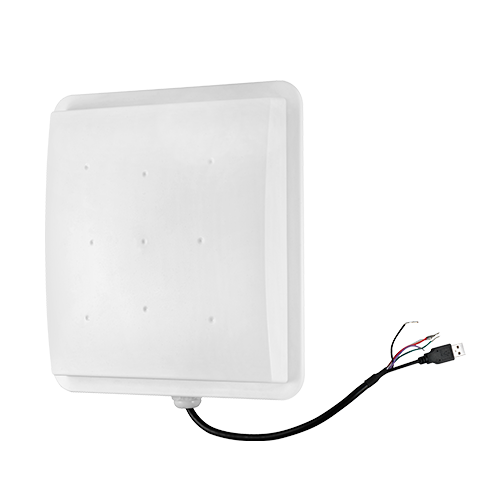

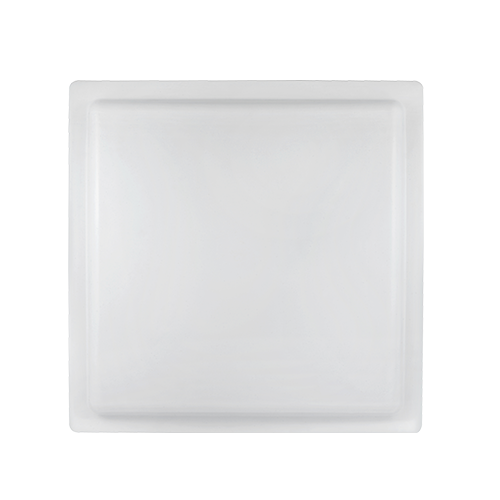

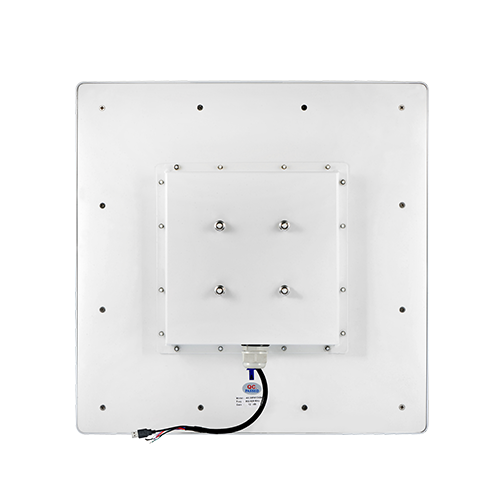

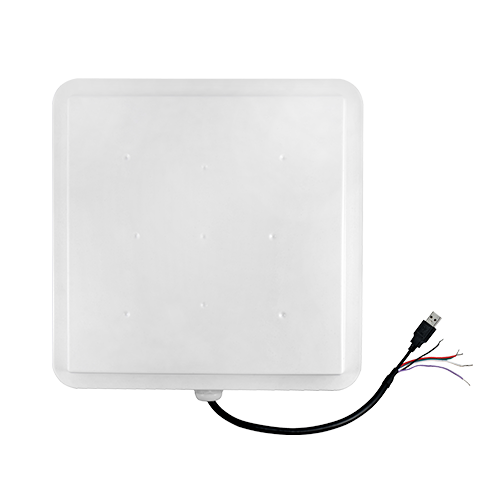

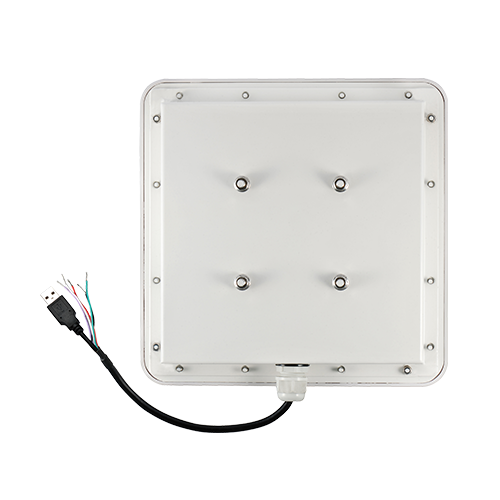

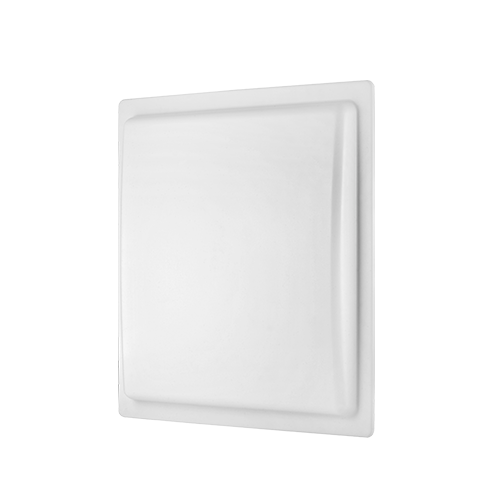

UHF Series
UHF 5 series and UHF 10 series reader are a new generation of UHF RFID series products for our company's independent research and development of the long distance card reader system in the personnel management,goods management and vehicle management. The product uses the industry's most cost-effective UHF card reader chip, and the part of swing card adopts the module integrated design, making the product to meet the technical requirements of the parking lot.Meanwhile, the utility model has the advantages of stable reading performance, good consistency, low working current and temperature, long service life, and small external influence, and the product adopts the waterproof outer shell design. The product is also a fully meet the CE, FCC technology requirements of the product, and to obtain CE, FCC and other security certification.
Product Features
Read range up to 12 meters (adjustable)
Read Sensitivity
Line polarization read mode
Wiegand 26-Bit (Can change to 34-Bit via software)
Two working mode
Trigger read & Always read(Default)
Comes with the mounting plate
Waterproof (IP65)
Maximum Cable Distance
100m
Multiple label recognition
Wide application
Vehicle management, Personnel management and Goods management
Reading Distance
Up to 12 meters (adjustable)
Technical Specifications
Model
UHF1-5E,UHF1-5F
Dimension
260*260*65(mm)
Reading distance
Up to 6 meters (adjustable)
Model
UHF1-10E,UHF1-10F
Dimension
445*445*70(mm)
communication interface
Wiegand 26(Default) /Wiegand 34, USB
Frequency
902Mhz – 928Mhz, 865MHz – 868MHz
Shell Material
Antenna Panel: ABS Engineering Plastics; Back Cover: Aluminum Shell
Working Voltage
9~12V DC
Working Current
150mA(Always Read)
Working Temperature
-20 °C - 60 °C
Interface Protocol
EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple tags identification
<100
Working mode
Always read(Default) /Trigger read
I/O Interface
Supports external trigger
Maximum power consumption
<3W (RF output 26dBm,multiple tags), <2W (RF output 26dBm,Sigle tags)
