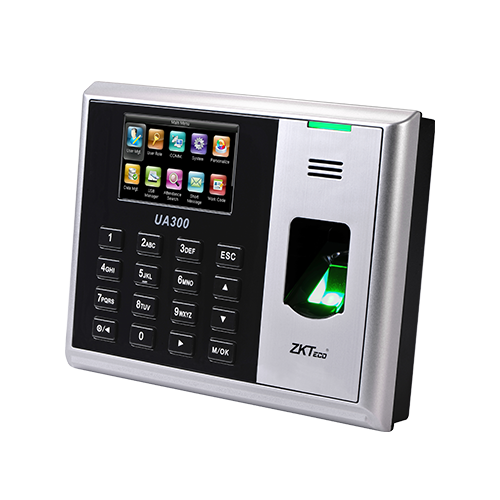

UA300
UA300 adopts the brand new firmware and provides an unprecedented user experience. It brings innumerable surprises, including the stunning GUI, rock-solid stability, fast matching speed and expandability. Users can easily manage data by networking UA300 via TCP/IP, USB Host or USB Client. Most importantly, all the functions can still operate in a networking state. UA300 is compatibility with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level. You can get the best of benefits from the UA300.
Product Features
Remarkable user experience
Intuitive and stunning UI designed with the most popular and internationalized factor
Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
Faster matching speed: less than 0.5 second
Excellent expandability
Easy to extend functions and customize customers’ demand
Enhanced features and performance
Support user validity settings
Support data backup and retrieve
Support advanced Workcode consisted of letters and numbers
Support chip encryption for firmware protection
Support more flexible menu configuration: double line text display
Support external printer for attendance records output (Optional).
Technical Specifications
Fingerprint Capacity
3000 (1:N)
Card Capacity
10,000 (Optional)
Record Capacity
100,000
Display
3-inch Screen
Communication
TCP/IP, USB ( host & client)
Standard Functions
Web Server, Short Message, Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 Digits User ID, DST, Schedule Bell
Optional Functions
ID/Mifare Card, External Printer and Bell, Photo ID, ADMS
Software
ZKTimeNet 3.0, BioTime 8.0
Power Supply
DC 5V 0.8A
Verification Speed
<_0.5 sec
Operating Temp.
0 °C- 45 °C
Operating Humidity
20%-80%
Dimension
180 × 135 × 37 mm (Length × Width × Thickness)
Net Weight
0.70 kg
