UA860

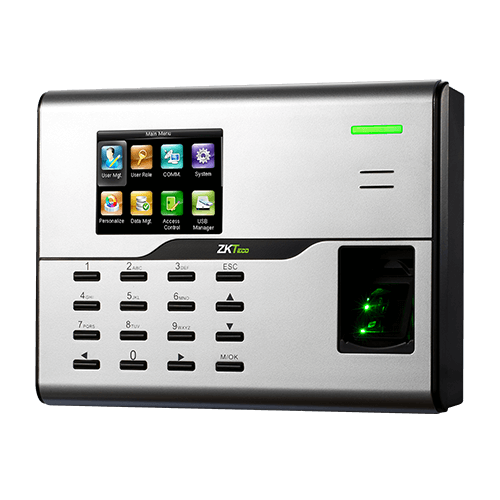

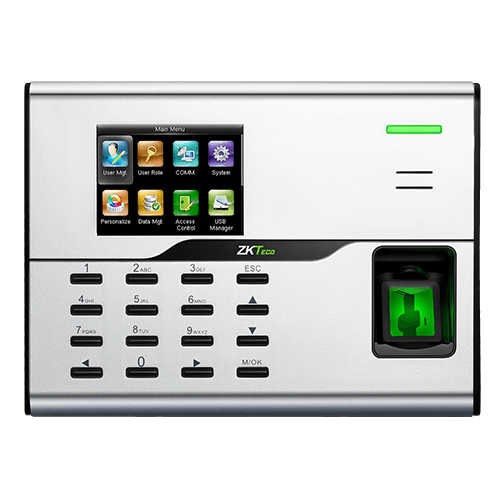

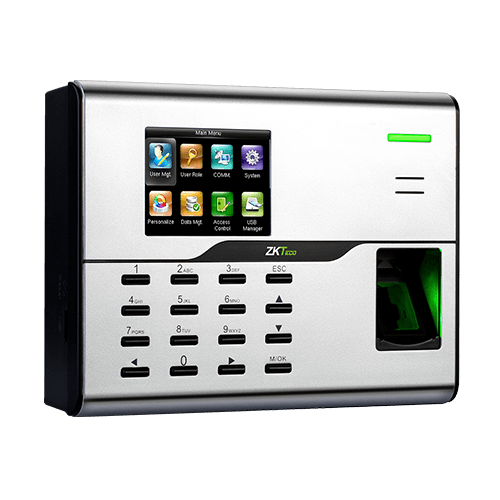

UA860 is a 2.8 inches color screen biometric terminal for Time & Attendance, and Access Control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB host port for data up/download to avoid the risk of accidental deletion. Besides, optional ADMS can achieve remote data management with our ZKTime.Net 3.0.

Product Image
Product image
Product image
Product image

Product Features

Wi-Fi

WiFi module is integrated. It is working on the 2.4G radio band, and meet the IEEE 802.11b/g standards.

USB

Support USB host connection to achieve data backup and management while the device is standalone.

ADMS

Optional for devices worldwide using. Solve the device’s capacity limitation through networking via HTTP sever. Mondial devices can be connected and upload & backup data automatically. This is helpful for devices managing and monitoring.

BioID

Using BioID Fingerprint Collector for excellent recognition rate. Dry, moist or rough fingerprint can work well

Technical Specifications

User Capacity

3000

Fingerprint Capacity

3000

Card Capacity

3000

Record Capacity

50,000

Display

2.8’’color screen

Communication

TCP/IP, WiFi, USB-host

Standard Functions

9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell, RS232 External Printer

Optional Functions

ID/Mifare, ADMS

Access Control Interface

3rd Party Electric Lock, Exit Button

Software

ZKTime.Net 3.0, BioTime 8.0

Power Supply

DC 12V/1.5A

Dimension

185*137*38.2mm (LxWxT)

Operating Temp.

0 °C - 45 °C

Operating Humidity

20% - 80%
