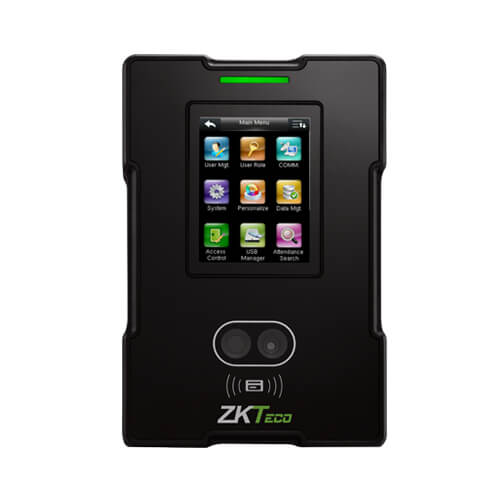

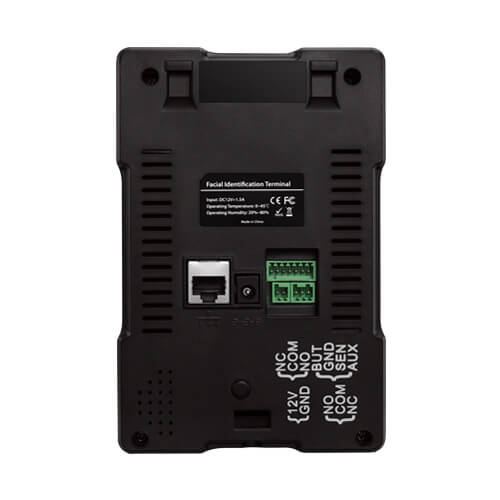

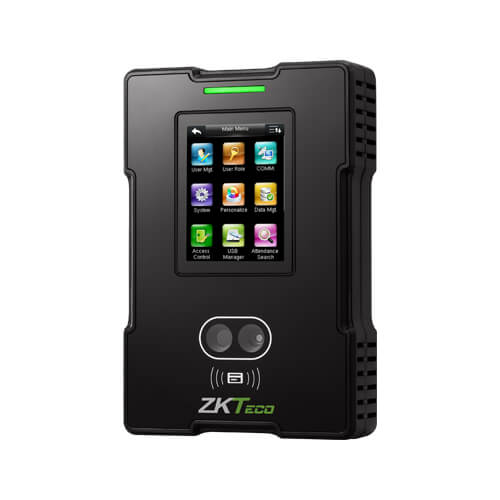

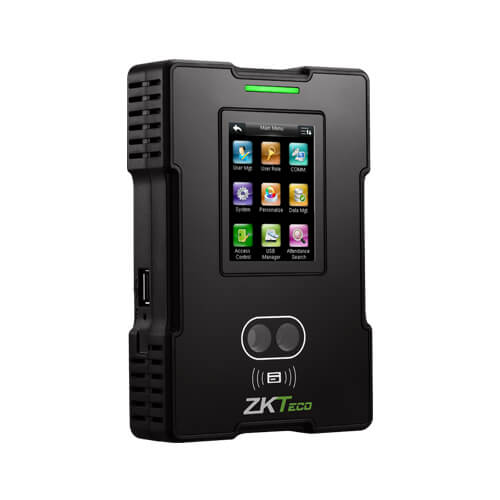

VF680
VF680 is a facial recognition terminal for time & attendance and access control which can connect with 3rd party electric lock, door sensor and exit button, etc. With the latest facial recognition algorithm and cutting-edge technology. It can save 3,000 face templates without dividing into groups. The product is able to communicate via WiFi, Ethernet, USB (host), so to ensure a smooth connection and data transfer. All the settings can be easily done on a 2.8-inch capacitive touch screen. It has been elaborately designed and finely processed to match your office perfectly.
Product Features
Elegant ergonomic design
Wi-Fi, Ethernet and USB host communication
Professional ZKTeco face identification connection
3000 face capacity
2.8 inch capacitive touch screen
Optional Mifare card module
Infra-red optical system enables user-identifications in a wide range of light environment
Technical Specifications
Display
2.8 inch capacitive touch screen
Face Capacity
3,000
Card Capacity
50,000/100,000
Logs Capacity
1,000,000
Communication
TCP/IP, USB host, WiFi (optional)
Standard Function
ID card, Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User Id, DST, Scheduled-bell and Short Message, 3rd party electric lock, door sensor, and exit button, alarm
Optional Function
Mifare Card, ADMS, WiFi
Power Supply
12V/1.5A
Verification Speed
<_1S
Operating Temperature
0-45°C
Operating Humidity
20%-80%
Dimensions
106×160×36mm(L×H×D)
