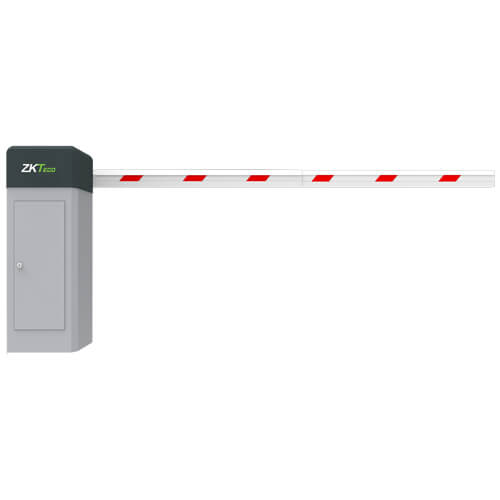

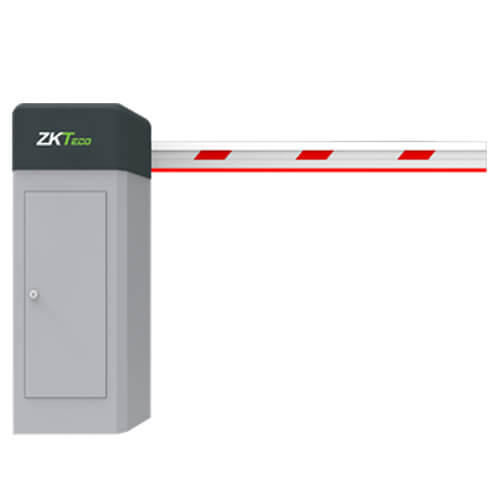

PB4000
PB4000 series parking barrier adopts die-casting aluminum alloy motor and extraordinary structural design, it offers not only a long-life cycle, high reliablity and quality, but also reduces the difficulty of equipment maintenance. It is an ideal choice for vehicle entrance control management.
Product Features
Supports external infrared radiation and vehicle loop detector for anti-crash function
Die-casting aluminum alloy motor with double strong springs makes the operation more stable
Wheel manual release in case of power cut, rotate the wheel manual release on the bottom of the motor to raise the bottom manually
The housing with modularized design is made of powder coated steel which offers best protection against corrosion
Built-in cooling fan, solving the problem of heat-protection, operating temperature of motor range from -40°C-+140°C
Technical Specifications
Model
PB4000
Boom type
Telescopic boom
Boom length
4m / 6m
Opening /closing time
3s / 6s
Model
PB4130
Boom type
90° folding boom
Boom length
3m
Opening /closing time
3s
Model
PB4030-LED
Boom type
Straight boom with LED light
Boom length
4m
Opening /closing time
3s
Supply voltage
110V AC or 220V AC
Power consumption
120W
Frequency
50 - 60Hz
Cabinet material
Powder coated steel
Boom material
Aluminum alloy
Working temperature range
-20°C ~ +60°C
Working humidity range
<_90%
Housing dimensions
328 (D)*286 (W)*934 (H) mm
Packing dimensions
460 (D)*420 (W)*1150 (H) mm
Net weight
60 kg
Gross weight
70 kg
