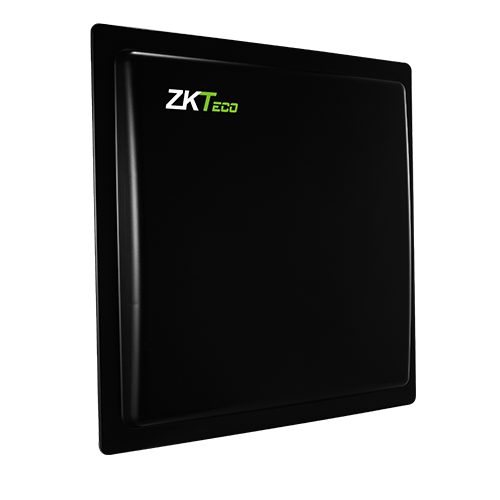

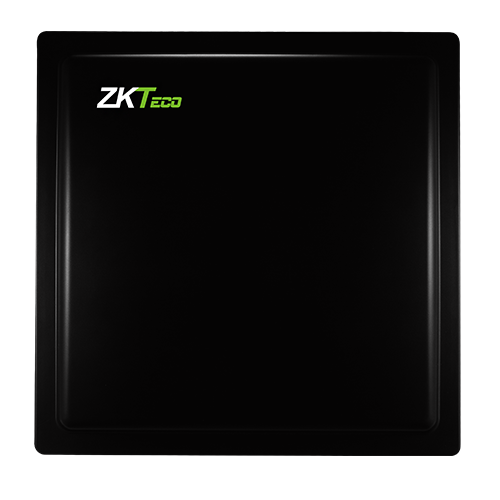

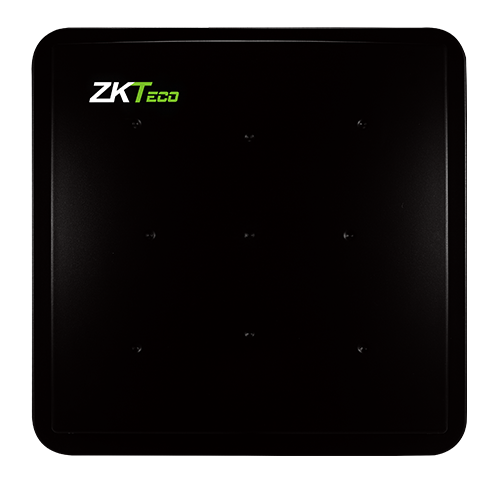

U1000 & U2000
U1000 and U2000 are long distance RFID access control machines which integrate functions of UHF readers and controllers. Compared with UHF readers, they increase access control functions and support TCP/IP communication, Wiegand in/out, two relays, 3rd party electric lock, door sensor, exit button, which enable easy installation and convenient use. The machines also support ZKAccess 3.5 and ZKBioSecurity 3.0 software. They have obtained IP66 protection level certification and is suitable for outdoor use. With outstanding long distance identification capability, the machines can be used in many applications including long distance fixed vehicle access management, long distance access control management and long distance pedestrian access management.
Product Features
Long Reading Distance
IP66 Protect Level
Supports ZKAccess3.5& ZKBioSecurity3.0 software
Access Control Function
Technical Specifications
Model
U1000E, U1000F
Card Capacity
5000 cards
Transactions
30,000
Hardware Platform
ZMM220
Working Frequency
F Series: 902Mhz-928MHz; E Series: 865MHz-868MHz
Reading Distance
0 - 6m (Stable is 0 - 5m)
Communication
TCP/IP (connect access software) , USB (connect demo)
Access Control Interface
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Wiegand In/Out
Access Control Functions
Standard access functions, anti-passback
Antenna Gain
8dBi
Output Power
18dBm-26dBm
Support Software
ZKAccess3.5, ZKBioSecurity3.0
Power Supply
DC12V, 3A
Working Temperature
-20?-+60?
Working Humidity
<95% (25? )
Dimension
250mm*250mm*70mm (±5)
Model
U2000E, U2000F
Reading Distance
0 -12m (Stable is 0 -10m)
Antenna Gain
12dBi
Dimension
445mm*445mm*70mm (±5)
