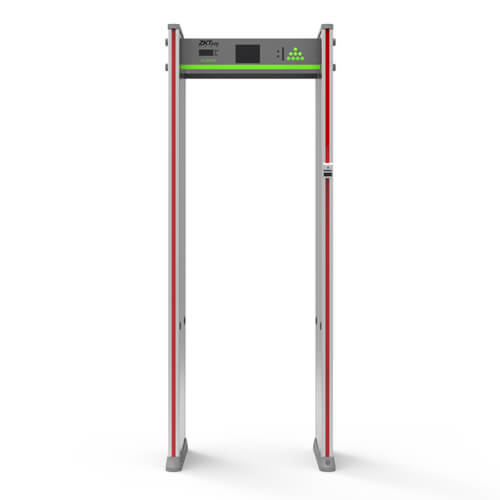

ZK-D3180S with Temperature Measurement
As the number of cases has been increasing and the geographical spread has been widening, the novel coronavirus outbreak has raised grave concerns about public health and personal hygiene. The disease can occasionally cause symptoms like high fever, and ZK-D3180S is a walk-through metal detector that can assist in body temperature measurement at the forehead and wrist of passengers. If the temperature detected is over 37.3°C, ZK-D3180S will raise an alarm to inform the guards.
Product Features
Technical Specifications
Power Supply
AC100 V~240V
Working Temperature
16°C ~ 38°C (60.8°F ~ 100.4°F)
Working Frequency
4kHz ~ 8kHz
External Dimensions (H*W*D)
2220 * 835 * 578 (mm)
Internal Dimensions (H*W*D)
1990 * 700 * 578 (mm)
Package Dimensions (H*W*D)
2310 * 350 * 665 (mm)
Gross Weight
65kg
Temperature Sensor Type
IR temperature sensor
Temperature Measurement Time
=1s
Temperature Measurement Point
Forehead or wrist
Temperature Measurement Distance
50mm ~ 100mm
Height of Temperature Sensor from the Ground
1500mm (customizable)
Temperature Measurement Deviation
±0.5°C (±0.9°F)
Temperature Range
30°C ~ 45°C (86°F ~ 113°F)
Interval Between Temperature Measurement
2s
