Atlas Prox Series
State-of-the-art 1, 2 and 4 door access control panels with built-in Web Application eliminate the need for management software
Product Features
Advanced Access Control Features
No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.
Door Control and More
User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.
Capacity
1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Prox Series panel can store up to 5,000 users and 10,000 transactions plus unlimited archive downloads.
Choice of Readers
Atlas Series supports ZKTeco KR series & any 3rd-party readers which communicate with Wiegand or OSDP communication protocols.
Communication
Atlas Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.
Mobile App
Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
Power
Atlas Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).
Lowest Total Cost of Ownership
Atlas Series panels come in several models to suit different project needs and reduce the cost of unused capacity. Easy-to-use embedded Web Application gets you up and running quickly. Firmware is field- upgradeable, allowing your system to stay current with the latest features and security enhancements
Technical Specifications
Capacity
Users
5,000
Event Database
10,000 transactions plus unlimited archive downloads
Output Relays
3Form-C Relays - SPDT 5A@36V DC or 8A@30V AC
Communication
TCP/IP and Wi-Fi for network connectivity RS485 for Wiegand & OSDP reader connectivity
Baud Rate for RS-485/OSDP
9600 bps
LED Indicator
Indications for power, communication, and tamper
Power
Consumption
9W@12V DC 750mA
Power Supply
12V DC 3A and PoE
Environment
Operating Temp
32-113 °F (0-45 °C)
Operating Humidity
20% to 80%

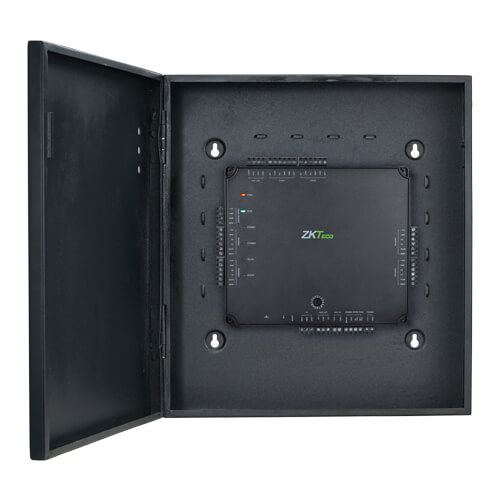

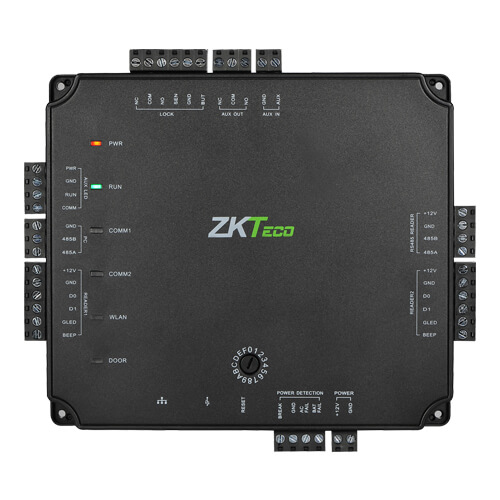

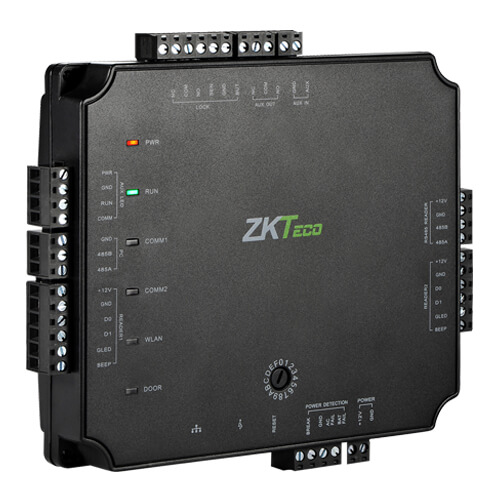

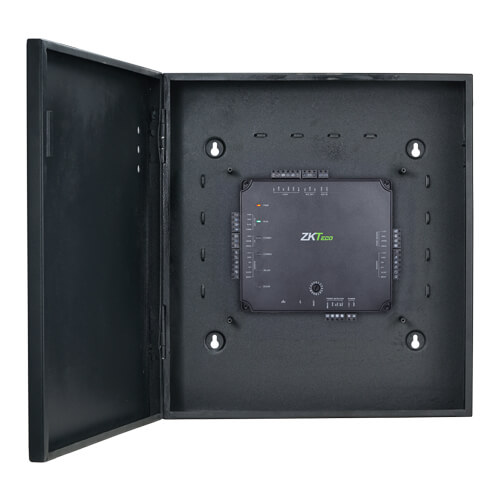

Atlas-100
Number of Doors Controlled
One Door
Number of Readers Supported
2 (Wiegand or OSDP Readers)
Types of Readers Supported
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
Number of Inputs
3 (1 Exit Button, 1 Door Sensor, 1 Aux)
Number of Outputs
2 (1 Form C relay for lock and 1 Form C relay for Aux output)
User Capacity
5,000
Events Database Capacity
10,000 transactions plus unlimited archive downloads
Weight
9 lbs (3.8 kg)
Communication
TCP/IP, Wi-Fi, Wiegand, OSDP
Browsers Supported
Chrome, Firefox, Edge
Enclosure
Powder Coated Aluminum
Mounting
Wall Mount
Recommended Power Supply
12V DC, 3A (PoE)
Dimensions (Bundle Only)
14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H)
Dimensions (Board Only)
6.3in. X 4.17in. (160mm X 140mm)

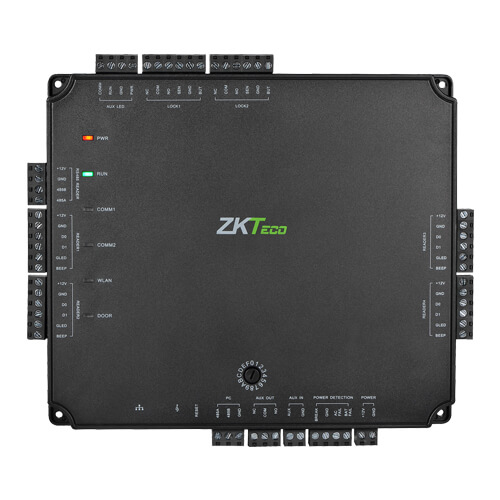

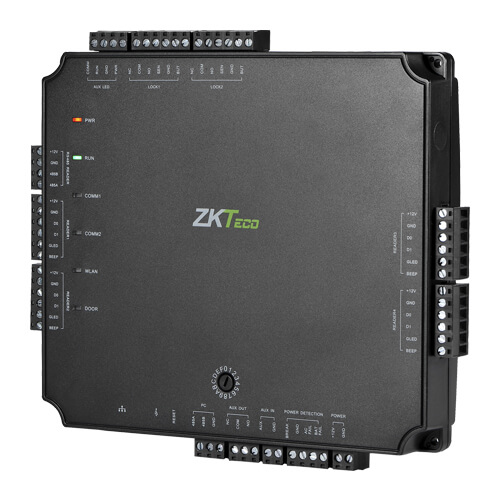

Atlas-200
Number of Doors Controlled
Two Doors
Number of Readers Supported
4 (Wiegand or OSDP Readers)
Types of Readers Supported
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
Number of Inputs
5 (2 Exit Buttons, 2 Door Sensors, 1 Aux)
Number of Outputs
3 (2 Form C relays for locks and 1 Form C relay for Aux output)
User Capacity
5,000
Events Database Capacity
10,000 transactions plus unlimited archive downloads
Weight
10 lbs (4 kg)
Communication
TCP/IP, Wi-Fi, Wiegand, OSDP
Browsers Supported
Chrome, Firefox, Edge
Enclosure
Powder Coated Aluminum
Mounting
Wall Mount
Recommended Power Supply
12V DC, 3A (PoE)
Dimensions (Bundle Only)
14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H)
Dimensions (Board Only)
7.75in. X 6.73in. (197mm X 171mm)

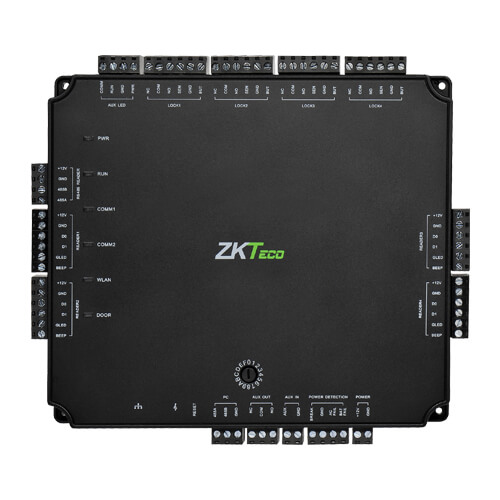

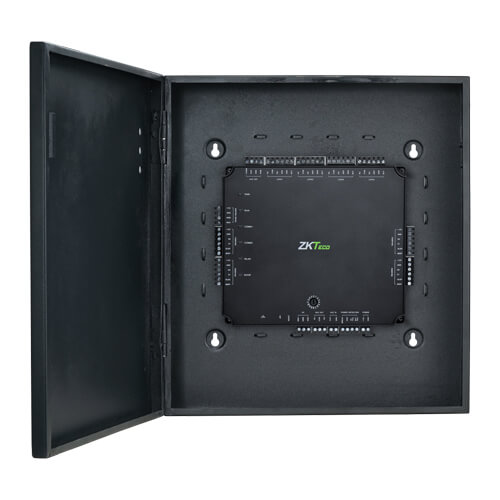

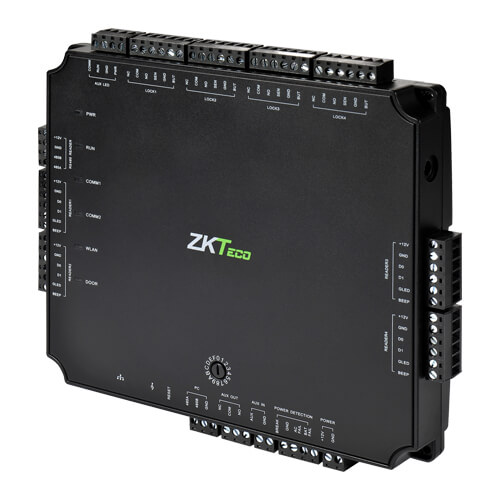

Atlas-400
Number of Doors Controlled
Four Doors
Number of Readers Supported
8 (Wiegand or OSDP Readers)
Types of Readers Supported
ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
Number of Inputs
9 (4 Exit Buttons, 4 Door Sensors, 1 Aux)
Number of Outputs
5 (4 Form C relays for locks and 1 Form C relay for Aux output)
User Capacity
5,000
Events Database Capacity
10,000 transactions plus unlimited archive downloads
Weight
10 lbs (4 kg)
Communication
TCP/IP, Wi-Fi, Wiegand, OSDP
Browsers Supported
Chrome, Firefox, Edge
Enclosure
Powder Coated Aluminum
Mounting
Wall Mount
Recommended Power Supply
12V DC, 3A (PoE)
Dimensions (Bundle Only)
14in. X 2.5in. X 12in. 380mm(L) X 80mm(W) X 280mm(H)
Dimensions (Board Only)
7.75in X 6.73in. (197mm X 171mm)
